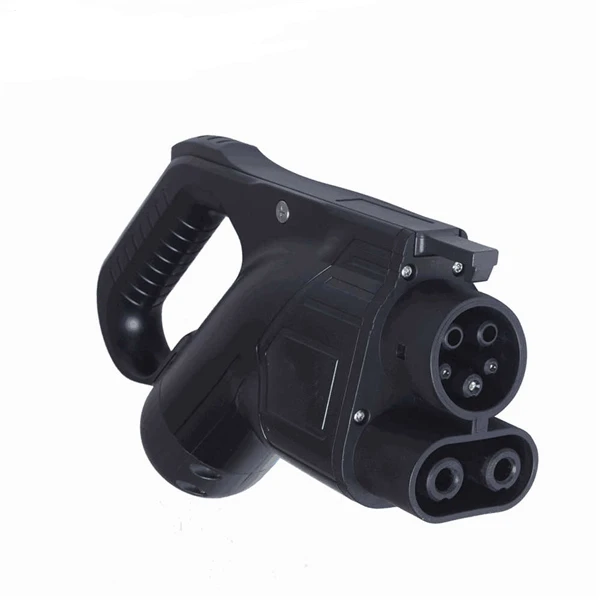

1. Overview of the J1772 connector
The J1772 connector is the core standard for electric vehicle charging in North America, established by SAE in 2001. Jiaxing Apex Import & Export Co., Ltd. (APEKS) is a manufacturer in this field that has passed ISO9001:2015 and IATF16949:2016 certification. Its Type 1 connector uses silver-plated terminal technology with a contact resistance of less than 0.5mΩ, ensuring zero-error docking with the charging ports of Tesla, Chevrolet and other models. This standardized design increases the compatibility of charging piles to 98%, making it a basic component for the construction of North American charging networks.
2. How does the J1772 connector work?
Working together through 5 functional pins:
2 main power pins (L1/N) transmit 240V AC
1 ground pin (PE)
Control pilot (CP) and proximity detection (PP) pins realize intelligent communication
APEKS's J1772 connector is upgraded on this principle, equipped with IP67 waterproof seal and V0 flame retardant shell, UL2251/CE62196 certified, can work stably in -30℃ to 50℃ environment, and has a plug-in life of more than 10,000 times.
3. Safety features of J1772 connector
Double power-off protection: CP signal blocks power supply when the plug is half inserted
Temperature monitoring: Built-in NTC sensor monitors terminal temperature in real time
Mechanical interlock: Charging cannot be started if not fully locked
Environmental protection: APEKS products have passed salt spray test (96h/5%NaCl) and UV aging test (3000h), suitable for high corrosion areas such as coastal areas
4. Why is the J1772 connector so important for the popularization of electric vehicles?
Reduce infrastructure costs: Universal standards increase the reuse rate of charging piles by 70%
Eliminate brand barriers: The SAE-J1772 to GB/T converter developed by APEKS is compatible with the three major standards of China, the United States and Europe
Safety endorsement: 90% of public charging piles in the North American market adopt this standard
Technical scalability: APEKS's J1772+CCS Combo solution can be expanded to support 150kW fast charging
5. What maintenance does the J1772 connector require?
Quarterly deep maintenance: Use APEKS EV-Clean Pro cleaner to remove the oxide layer on the contacts
Annual inspection: Use a microohmmeter to measure the contact resistance (standard value <5mΩ)
Environmental adaptation: It is recommended to use the APEKS Arctic series (applicable to -40℃) or Tropical series (anti-mold design)
6. Conclusion
As the J1772 standard continues to evolve, innovative companies such as APEKS are promoting three upgrades:
Smart charging (integrated RS485/PLC communication module)
Material innovation (silicon carbide contacts reduce energy consumption by 15%)
Global certification (CE/UKCA/CCS/GB/T certifications are obtained at the same time)
These breakthroughs have enabled the standard to maintain a market share of more than 65% despite the impact of new technologies such as NACS.
