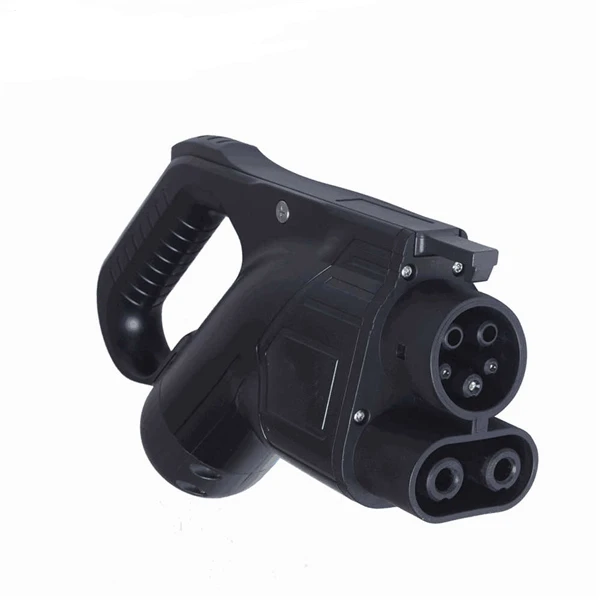

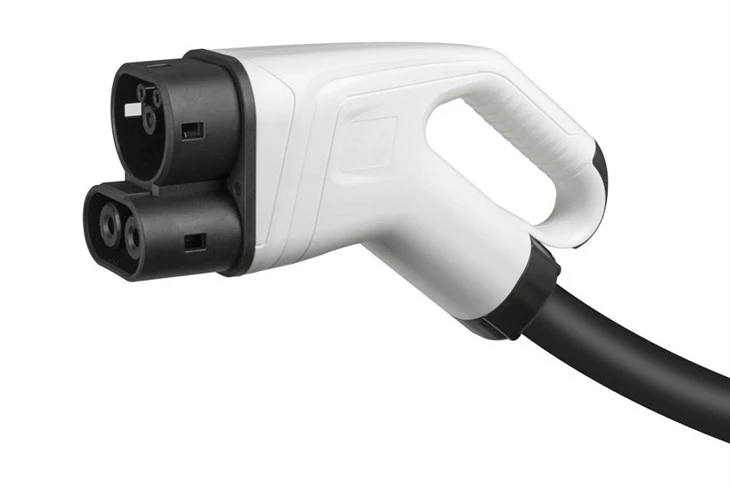

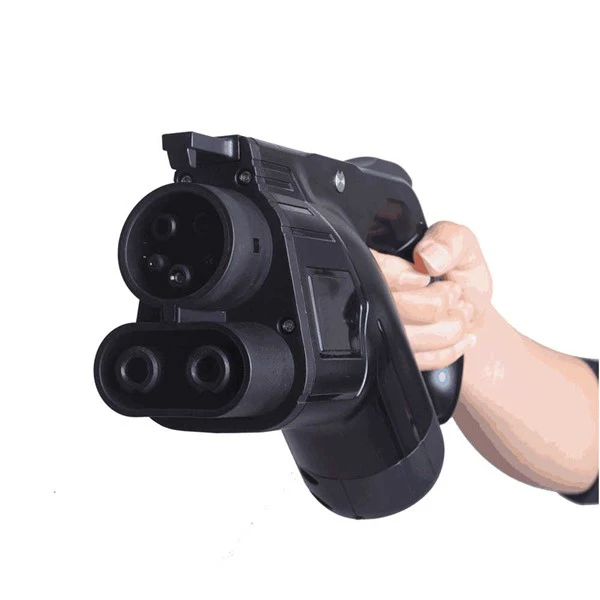

CCS 1 Plug
The CCS 1 Plug Manufacturer!
APEKS is a forward-looking enterprise that is actively involved in the research, development, manufacturing, and sales of electric vehicle charging products, specifically electric vehicle connectors, portable electric vehicle chargers, and electric vehicle cables. They have achieved notable certifications for their products, including ISO9001:2015 and IATF16949:2016 quality management system certifications, as well as essential testing and certification marks such as TUV, CE, UKCA, UL, and CQC.
Why choose us
Professional team
The company boasts a dedicated R&D team of over 100 professionals with over a decade of experience in electronic power supplies. Their expertise spans various domains, including materials, structures, electronics, appliances, software, hardware, and technology.
Technology Certification
APEKS have achieved notable certifications for their products, including ISO9001:2015 and IATF16949:2016 quality management system certifications, as well as essential testing and certification marks such as TUV, CE, UKCA, UL, and CQC.
Production Equipment
APEKS have a well-equipped manufacturing facility with over 200 large-scale production machines, coupled with well-established production, quality inspection, and transportation processes.
Global Sales
APEKS caters to an impressive list of customers, including well-known brands such as BYD, NIO, VESTEL, and VORWERK. Their global presence is evident, with products exported to more than 60 countries.
Key Features Of The CCS1 Charging Plug
Dual Compatibility:
The CCS1 plug supports both AC and DC charging. This dual functionality allows EV owners to use the same connector at home (with slower AC charging) and at public fast-charging stations (with faster DC charging).
Fast Charging Capabilities:
One of the primary advantages of the CCS1 plug is its ability to handle high-power DC fast charging. With the right infrastructure, it can deliver charging speeds of up to 350 kW, allowing EVs to charge from 20% to 80% in as little as 20-30 minutes.
Standardization:
The CCS1 plug is part of the global Combined Charging System (CCS) standard, which ensures compatibility across different EV models and charging networks. This standardization simplifies the charging process for EV owners, providing more flexibility and convenience.
Safety Features:
The CCS1 plug includes several built-in safety features, such as automatic power cut-off if the connector is removed during charging, and communication between the vehicle and the charger to ensure safe and efficient power delivery.
Specifications and compatibility of CCS 1 Plug
Maximum power: For uncooled CCS1 connectors, the maximum charging power is up to 240 kW. However, some sources indicate a theoretical possibility of up to 350 kW under optimal conditions, which allows batteries to be charged at much faster stations. For example, Tesla's CCS1 adapter supports charging up to 250 kW, making this connector attractive to owners of high-performance electric vehicles.
Voltage and current: The voltage can be up to 1000 V, enabling high levels of charging speeds at Level 3 stations. Standard connectors support 200 A current, but with the use of cooling, currents of up to 500 A can be achieved, further increasing charging speeds.
Communication protocol: The CCS1 connector uses the HomePlug GreenPHY protocol, which is based on the ISO/IEC 15118 standard. This provides automatic billing, charging authorisation and integration with various payment systems, which is more convenient for users and simplifies the charging process.
Contacts:The CCS1 connector has a total of 7 pins: 5 for alternating current (AC) charging and 2 for direct current (DC) charging. The pins for AC power supply include Line, Neutral, Ground, Pilot, Proximity, and two additional pins (positive and negative) are used for DC charging.
Main types of CCS connectors
CCS1:
CCS1 is a charging standard for electric vehicles that combines both AC and DC charging capabilities in a single connector. The connector has a plug for AC charging and two pins for DC charging, allowing for fast charging. CCS1 aims to promote standardisation and versatility, which helps to develop a global infrastructure of charging stations for electric vehicles.
CCS2:
CCS2, or Combined Charging System 2, is a global standard for charging electric vehicles used in Europe, India and other regions. It combines AC and DC charging through a single connector, using a three-phase AC connector to allow charging at higher power levels. As with the CCS1, the CCS2 has two additional DC charging pins, which contributes to standardisation and efficient charging of electric vehicles.
Key Components of the Combined Charging System
Charging Connector
The Combined Charging System plug combines AC and DC charging in one. EV users can charge their vehicles at home or at fast-charging stations.
Vehicle Inlet
The EV's inlet is designed to accept CCS connectors. This makes it compatible with both AC and DC charging.
Communication Protocol
Combined Charging System uses the ISO 15118 protocol for communication. This protocol supports advanced features like Plug & Charge, ensuring easy billing and authentication.
Charging Stations
CCS chargers are equipped for both AC and DC charging. These stations provide power levels suitable for various EV models.
FAQ
As one of the best ccs 1 plug manufacturers and suppliers in China, we warmly welcome you to wholesale cheap ccs 1 plug from our factory. All our products are with high quality and competitive price.
CCS 1 Plug, ccs 1 connector, EV Charging Plug
