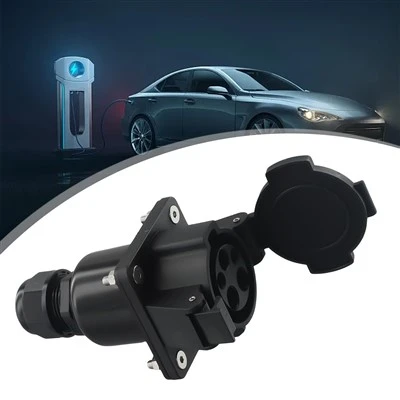

J1772 SOCKET
The J1772 SOCKET Manufacturer!
APEKS is a forward-looking enterprise that is actively involved in the research, development, manufacturing, and sales of electric vehicle charging products, specifically electric vehicle connectors, portable electric vehicle chargers, and electric vehicle cables. They have achieved notable certifications for their products, including ISO9001:2015 and IATF16949:2016 quality management system certifications, as well as essential testing and certification marks such as TUV, CE, UKCA, UL, and CQC.
Why Choose Us
Professional team
The company boasts a dedicated R&D team of over 100 professionals with over a decade of experience in electronic power supplies. Their expertise spans various domains, including materials, structures, electronics, appliances, software, hardware, and technology.
Technology Certification
APEKS have achieved notable certifications for their products, including ISO9001:2015 and IATF16949:2016 quality management system certifications, as well as essential testing and certification marks such as TUV, CE, UKCA, UL, and CQC.
Production Equipment
APEKS have a well-equipped manufacturing facility with over 200 large-scale production machines, coupled with well-established production, quality inspection, and transportation processes.
Global Sales
APEKS caters to an impressive list of customers, including well-known brands such as BYD, NIO, VESTEL, and VORWERK. Their global presence is evident, with products exported to more than 60 countries.
Advantages of J1772 SOCKET
Compatibility: One of the key advantages of J1772 Chargers is the widespread compatibility. They are designed to work with a wide range of electric vehicles, making them a versatile option for both current and future EV models.
Safety: J1772 Chargers incorporate safety features, including interlocking mechanisms and ground fault protection, to ensure secure and hazard-free charging experiences.
Ease of use: The J1772 connector is user-friendly, allowing for simple and convenient plug-in and disconnect actions. This user-friendliness encourages more people to adopt electric vehicles.
Integration with existing infrastructure: Many public charging stations are equipped with J1772 connectors, making it easy for EV owners to find charging options and use the existing charging infrastructure.
Reliability: J1772 Chargers have a proven track record of reliability and durability, contributing to their acceptance as a standard charging solution.
Technical Specifications of the J1772 Plug
Voltage: 120V (Level 1) or 208–240V (Level 2)
1
>>
Current: Up to 80 amps (most stations deliver 30–40 amps)
2
>>
Charging Power: Up to 19.2 kW depending on the station and vehicle capability
3
>>
Charging Time: Typically 4–10 hours for a full charge, depending on battery size and charger amperage.
4
J1772 Charging Levels
Level 1 Charging
The simplest and slowest option is level 1 charging. We're referring to connecting your EV to a typical 120-volt household socket. You can use an adapter or connect to the EV directly with the J1772 connector. While it's practical for charging overnight, it's not the best option if you're pressed for time.
Level 2 Charging
Level 2 charging expedites the process. These chargers plug into a 240-volt socket. Level 2 allows for a full charge in a few hours rather than overnight. These chargers are frequently seen in garages at homes and are widely available at public charging stations.
Level 3 Charging / DC Fast Charging
Level 3 charging is where things start to get interesting. These chargers, also known as DC fast charging, can fully charge your EV in under an hour. It is important to remember that you need a CCS connector for DC charging.
Key Components of the J1772 Plug
Connector Housing: The outer shell of the J1772 plug, typically made of sturdy and durable materials, provides protection and mechanical support to the internal components.
Power Pins: These pins carry the electrical current from the charging station to the EV. The J1772 plug has three power pins responsible for line, neutral, and ground connections.
Control Pilot: The control pilot pin facilitates communication between the EV and the charging station. It allows the charging station to monitor the charging status, relay safety information, and control the charging process.
Proximity Detection: The proximity detection mechanism ensures a secure connection by detecting the presence of the plug in the EV's charging inlet. It also enables the locking mechanism to engage, preventing accidental disconnection during charging.
Locking Mechanism: The J1772 plug features a mechanical locking mechanism that secures the connection between the EV and the charging station. This ensures a stable and reliable connection, even in challenging environmental conditions.
Ground Fault Protection: The J1772 plug incorporates ground fault protection to mitigate the risk of electrical shocks. It continuously monitors the electrical circuit and detects any current imbalances, immediately interrupting the charging process to prevent accidents.
FAQ
As one of the best j1772 socket manufacturers and suppliers in China, we warmly welcome you to wholesale cheap j1772 socket from our factory. All our products are with high quality and competitive price.
charging car from home socket, J1772 SOCKET, Sae J1772 Socket
