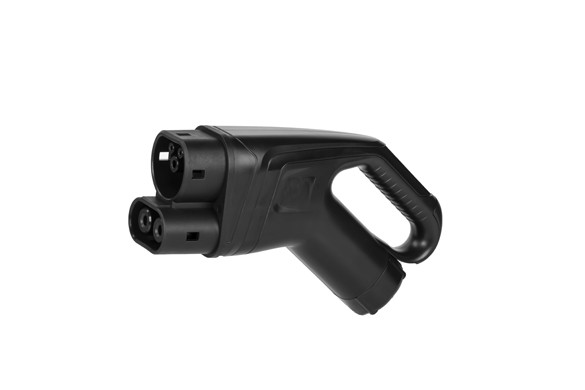

IEC 62196 CCS2 DC EV Plug Connector Charger For EV Charging Station
- The CCS2 EV Plug is designed for high-power DC EV charging applications. It offers superior power delivery, safety, and user convenience. The CCS2 EV plug is compatible with all CCS2-enabled electric vehicles and is approved for public and private charging networks.
- The CCS2 EV Plug uses ultrasonic welding technology, which makes it highly reliable with a resistance close to zero. With its output current capability of up to 350A and natural heat dissipation, it allows electric vehicle owners to achieve faster and safer charging.
Main Parameter
|
Rated Current |
300A-700A |
|
Rated Voltage |
1000VDC |
|
Insulation Resistance |
500MQ |
|
Withstand Voltage |
4500V |
|
Elammability Rating |
UL94V-0 |
|
Plug Lifespan |
>10000 Mating Cycles |
|
Protection Rating |
IP67 |
|
Temperature Rise |
<50K |
|
Operating Environment Temperature |
-30℃-+50℃ |
|
Insertion & Withdrawal Force |
<140N |
|
Liquid Cooling System Power Consumption |
<160W |
|
Base Structure Material |
PC |
|
Plug Material |
PA66+25%GF |
|
Terminal Material |
Copper alloy, electroplated silver |
|
Coolant Medium |
Water + Ethylene Glycol Aqueous Solution /Dimethicone |
|
Coolant Capacity |
Approx. 2.5L (5m cable) |
|
Coolant Pressure |
Approx.3.5-8bar |
|
Coolant Flow Rate |
1.5-3L/min |
|
Heat Exchange Rate |
170W@300A 255W@400A 374W@500A 530W@600A |
|
Liquid Cooling System Noise Output |
<60dB |
|
Warranty |
24 months/ 10000 Mating Cycles |
Products Highlights
Moisture-proof
APEKS EV plugs adopt terminal over-molding technology. Make the product less susceptible to moisture, even charging electric vehicles at the seaside, it will not be affected by air humidity.
Environmental Friendly
APEKS adheres to the concept of environmental protection. The product is packaged with recyclable materials. Promise to use one ten-thousandth of the annual profit to give back to society and plant trees for afforestation.
Safe&Fast
APEKS CCS2 EV Plug is a powerful and reliable charging solution for electric vehicles. It features a current output of up to 600A, allowing for safe and rapid charging of electric vehicles.
Operation Maintenance
The CCS2 EV Plug has terminal quick change technology, which allows the terminal or EV plug to be replaced quickly and easily. This greatly reduces the operation and maintenance cost of the charging pile.
Air/Liquid Cooling
APEKS EV Plug can be combined with liquid cooling technology or air cooling technology to meet higher current requirements. APEKS liquid cooling EV cable adopts a special copper-clad water structure. When the product is more slim and lightweight.
OEM&ODM
The APEKS EV Plug supports customization in color, appearance, function, LOGO, and many other aspects. According to customer needs, professional solutions can be quickly provided to help customers win the market faster.
