Reliable, high-performance electric vehicle charging solution
Product specifications
Rated current: Supports 16A and 32A to meet the needs of different charging speeds.
Operating voltage: Range includes 120V and 240V DC, suitable for various power supply environments.
Insulation resistance: higher than 1000 megohm, passed DC500V test to ensure electrical safety.
Terminal temperature rise: less than 50K, effectively controlling the temperature during charging and improving charging safety.
Voltage resistance: up to 2000V, ensuring the isolation and stability of the cable circuit.
Waterproof level: reaches IP55, providing additional protection and adapting to various climate conditions.
Contact resistance: Maximum 0.5 milliohm, reducing power loss.
Applicable models

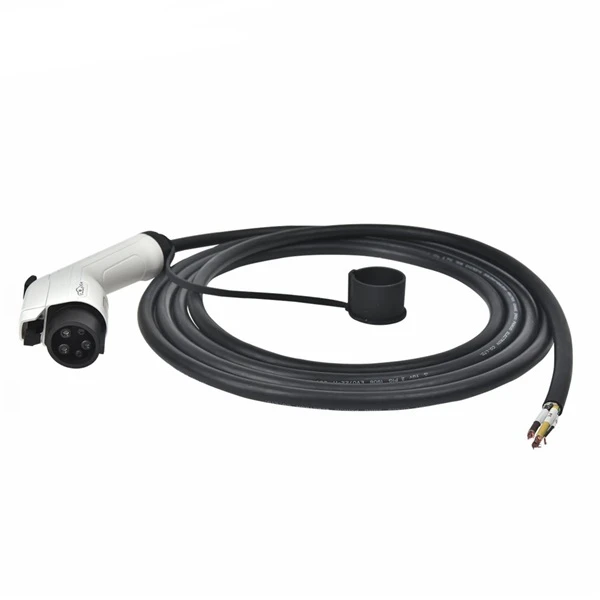

Type 1 Tethered EV Charging Cable is suitable for a variety of electric models, including but not limited to:
- Chevrolet Volt
- Citroen C-Zero
- Fisker Karma
- Ford Focus Electric
- Ford C-Max Energy
- Mia Electric Van
- Mitsubishi-I Miev
- Mitsubishi Outlander Phev
- Nissan Leaf
- Peugeot Ion
- Renault Fluence
- Renault Kangoo
- Smiths Edison Van
- Smiths Newton
- Tata Indica Vista EV
- Toyota Prius
- Vauxhall Ampera
- BMW i3 and i8
- And some Tesla models (requires Tesla charging adapter)
Electrical properties
Complies with 62196-2 IEC 2010 SHEET 2-IIe standard
Rated current: 32Amp, equipped with 3x6mm2+2x0.5mm2 charging cable
Operating voltage: 250V/415V, adaptable to various power supply environments
Service life: more than 50,000 times
Insulation resistance: higher than 1000 megohms
Terminal temperature rise: less than 50K
Contact resistance: 0.5 milliohm max
Seismic resistance: Meet the requirements of JDQ 53.3
Operating temperature range: -30°C to +50°C
Shell material: thermoplastic material, flame retardant meets UL94 VO standard
Contact pins: Copper alloy, silver or nickel plated
Gasket: rubber or silicone rubber
Type 1 Tethered EV Charging Cable provides electric vehicle owners with a reliable charging solution due to its excellent performance, wide applicability and high safety. Whether you are charging at home or traveling, this cable will be your right-hand assistant, supporting electric travel and contributing to sustainable travel.
