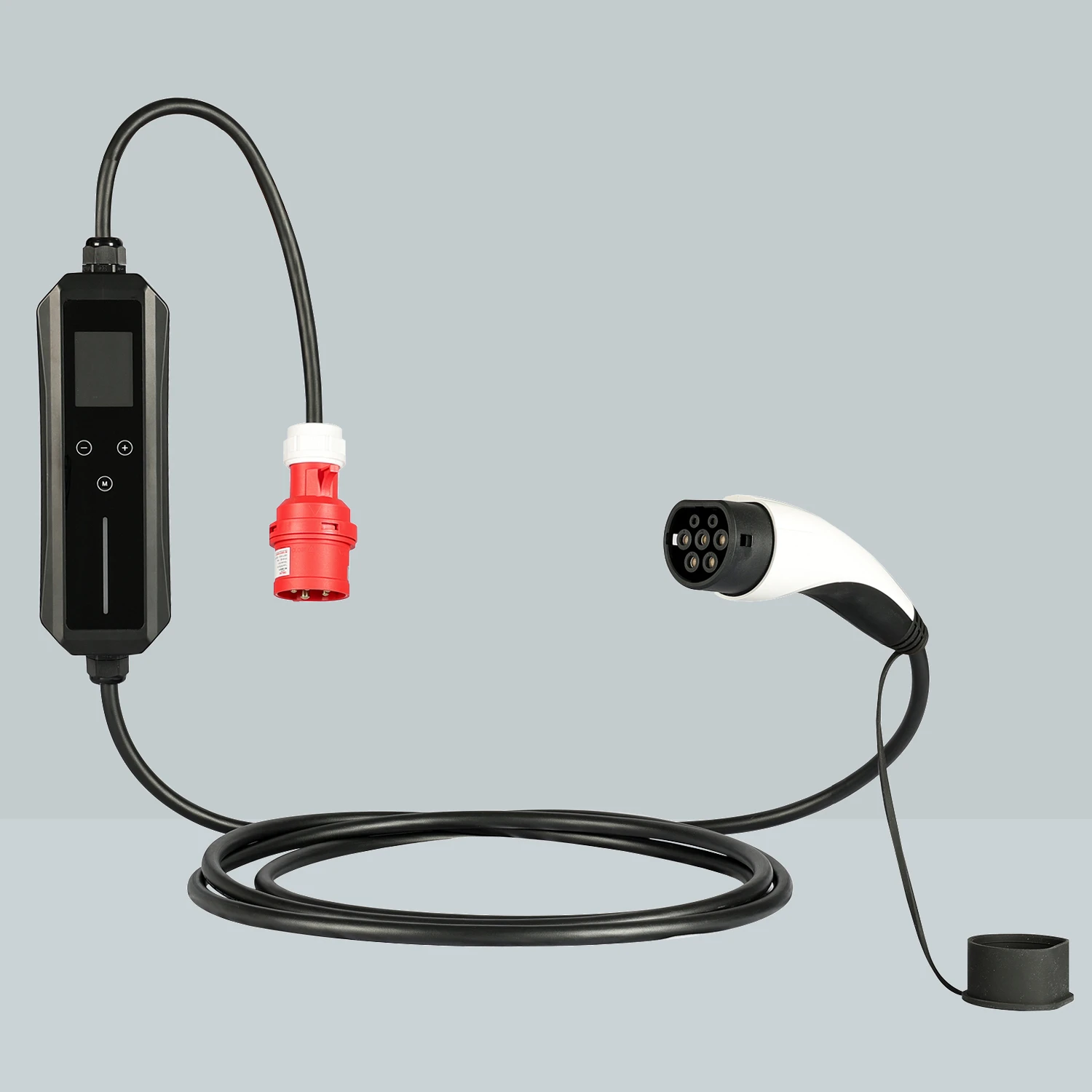

Mode 2 EV Charging cable
Core Advantage
High compatibility
High speed charging
Equipped Type A+6ma DC filter
Automatically Intelligent Repair
Automatically restart function
Over-temperature protection
Full link temperature control system
Box Body
LCD display
IK10 Rugged enclosure
Higher waterproof performance
IP66, rolling-resistance system
EV Plug
Integrated design
Long working Life
Good conductivity
Self filter the surface impurities
Silver plating design of terminals
Real-time temperature monitoring
Heat Sensor guarantee the charging safety
TPU Cable
Comfortable to touch
Durable and preservative
EU standard ,Halogon-free
High and cold temperature resistance
| Electrical Specification | Working Environment | ||
| Input Voltage | 100V AC | Waterproof Protection Degree | IP66 |
| Output voltage | 250V AC | Maximum Altitude | <2000m |
| Max. output Current | 16A | Environment Temperature | -40℃ ~ +55℃ |
| Max. output Power | 3.6kW | Relative Humidity | 0-95% non-condensing |
| Input Frequency | 47~63Hz | Standby Power Consumption | <8W |
| Charging interface type | IEC 62196-2, SAE J1772 | Cooling | Natural air cooling |
| Function and Accessory | Certificate | ||
| Ethernet/WIFI/4G/Bluetooth | No | CE | FCC |
| LCD | 1.8-inch color display | CCC | CSA |
| RCD | Type A / Type A+6mA | IK10 | IP66 |
| LED Indicator light | Rolling | ||
| Intelligent power adjustment | Yes | ||
| RFID | No | ||
steps for usage-Start
1.Plug the power plug (wall end)
into the wall socket.
2.Switch to the correct use current.
3.Insert the charging plug
(car end)into the charging
socket on the car.
4.Start charging…
Steps for usage-finish
1.Pull out the charging
plug(car end).
2.Pull out the power plug(wall end).
3.Organize and place charging equipment.
·Please select a suitable chargingcurrent in the charging gun,thecurrent cannot be switched duringthe charging process.
The portable electric car charger is designed as a LEVEL 2 AC charger, with charging power ranging from 3.6kW to 22kW. To ensure user safety and prevent potential hazards, it is imperative to thoroughly review the equipment manual before usage. Charging should only take place in locations that meet the specified charging conditions, and users must verify that the power supply and wiring are in a normal and functioning state prior to initiating charging.
Q: What is a portable Mode 2 charging cable?
A: A portable Mode 2 charging cable, often referred to as an on-the-go charging solution, is designed to enable electric or hybrid vehicle owners to charge their vehicles using standard electrical outlets, such as Schuko or CEE receptacles. This versatile cable is particularly useful in situations where a dedicated charging station is not accessible, providing an emergency charging option for users on the move. With the convenience of a portable Mode 2 charging cable, electric vehicle owners can enhance their charging flexibility and ensure they have a reliable solution even in the absence of fixed charging infrastructure.
Q: What is a standard Mode 2 charge cable?
A: A standard Mode 2 charge cable is a specialized charging cable equipped with integrated shock protection against both AC and DC currents. In Mode 2 charging, this cable is typically included as part of the electric vehicle (EV) equipment. The distinguishing feature of Mode 2 charging cables is the built-in protection mechanisms within the cable itself, specifically designed to guard against electric shock hazards. This sets Mode 2 charging apart from Mode 1, offering an added layer of safety during the charging process. By incorporating advanced safety measures, the standard Mode 2 charge cable ensures a secure and reliable charging experience for EV owners.
