mode 2 ev charger - Portable Car Charging Solution

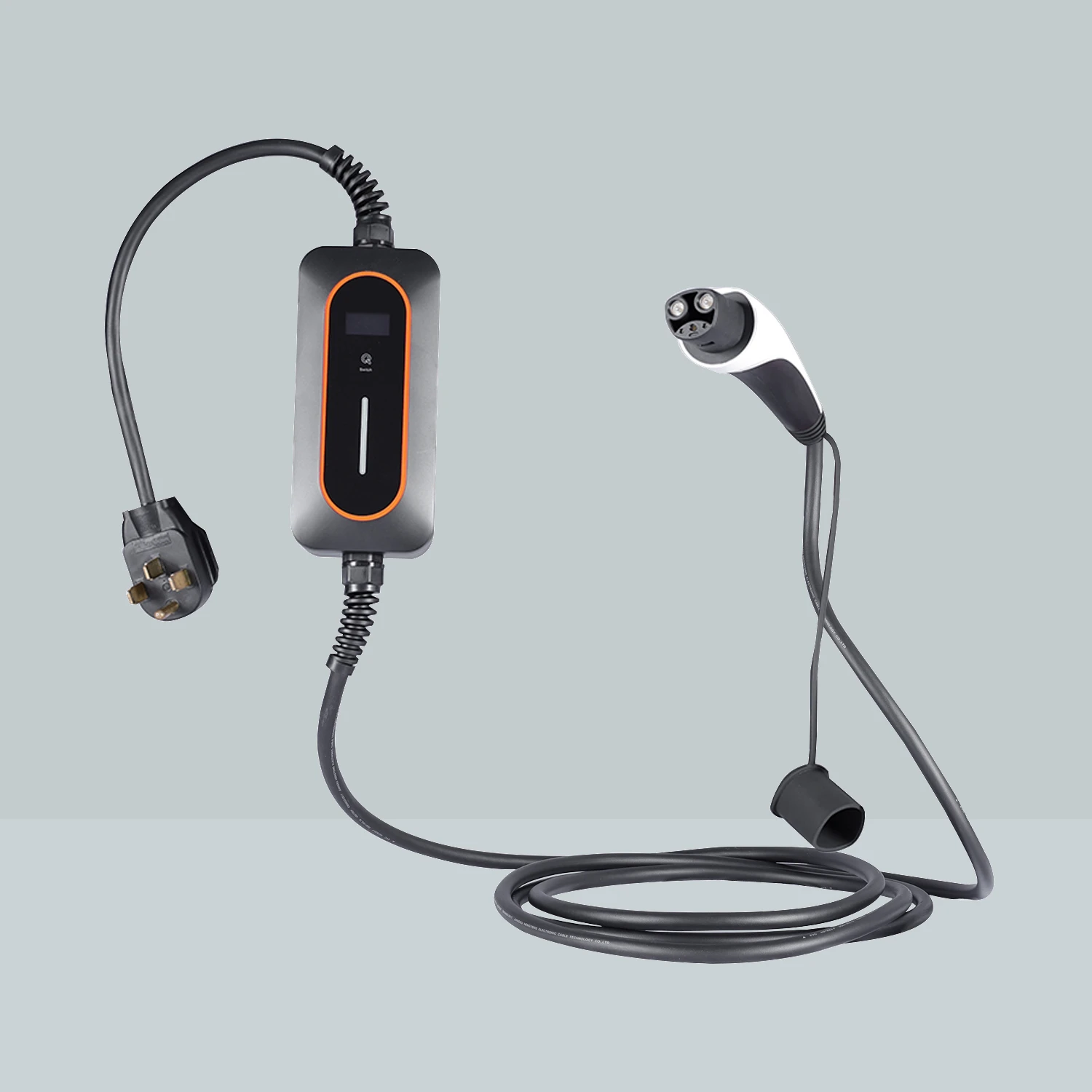

Mode 2 EV charging cable is a portable charging cable that is able to charge Type 1 or Type 2 vehicles. It's a great option when traveling outside as a portable charging station.
APEKS mode 2 EV charging cable is equipped with replaceable plugs to satisfy charging in different regions.
why choose mode 2 ev charger
Standard
SAE J1772:2016
IEC 62752:2016
IEC 62196-1:2014
IEC 62196-2:2016
GB/T 18487.1-2015
GB/T 18487.2-2017
GB/T 20234.1-2015
GB/T 20234.2-2015
Features
Customized design and module assembly
Patented over temperature protection
3-color LED indicator
Charging current optional mode
Strong electromagnetic compatibility
Protection grade: IP55
Safety protection (low voltage, over voltage, over current, over temperature, Leakage protection, lightning protection, short circuit, and communication fault)
Customizable replaceable plug
Specification
Input voltage range: 110V~250V AC
Input voltage mode: 1-phase 3-wire
Output voltage range: 110V~250V AC
Maximum output current: 6, 8, 10, 13A
Maximum output power: 3.25KW
Ambient temperature: -30℃~+50℃
Test
Normal end of charging test
Control sequences of charging connection test
Protection test
EMC test
Environment test
National standard test
steps for usage-Start
1.Plug the power plug (wall end)
into the wall socket.
2.Switch to the correct use current.
3.Insert the charging plug
(car end)into the charging
socket on the car.
4.Start charging…
Steps for usage-finish
1.Pull out the charging
plug(car end).
2.Pull out the power plug(wall end).
3.Organize and place charging equipment.
·Please select a suitable chargingcurrent in the charging gun,thecurrent cannot be switched duringthe charging process.
