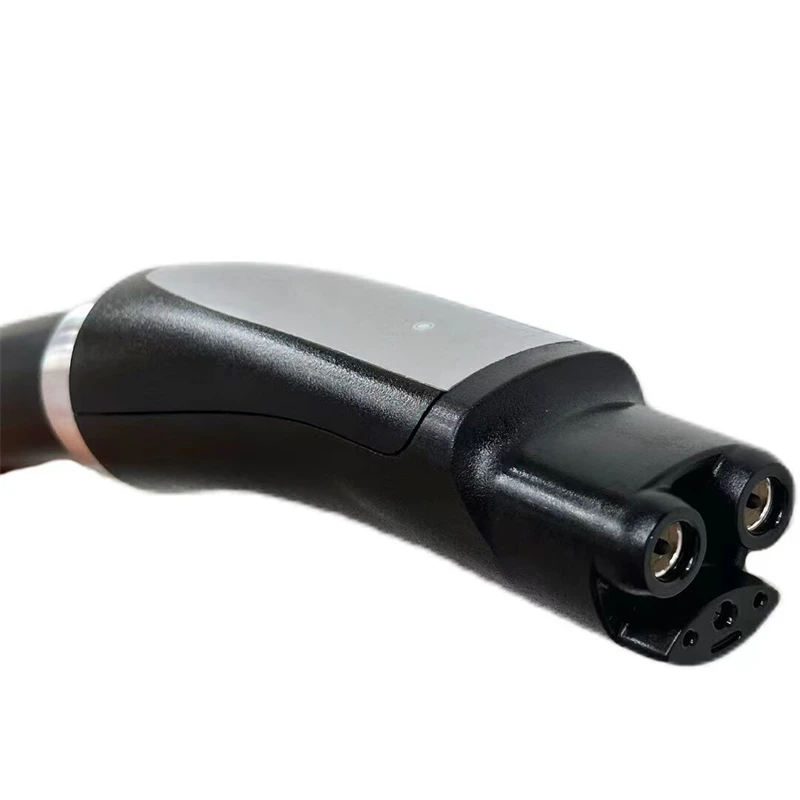

America NACS Tesla DC Connector
The America NACS Tesla Connector supports alternating current (AC) charging and direct current (DC) fast charging.
Products Features:
1. Conform to the provisions and requirements of NACS standard, it can charge all Tesla cars in Europe and USA, correctly and effectively with high compatibility.

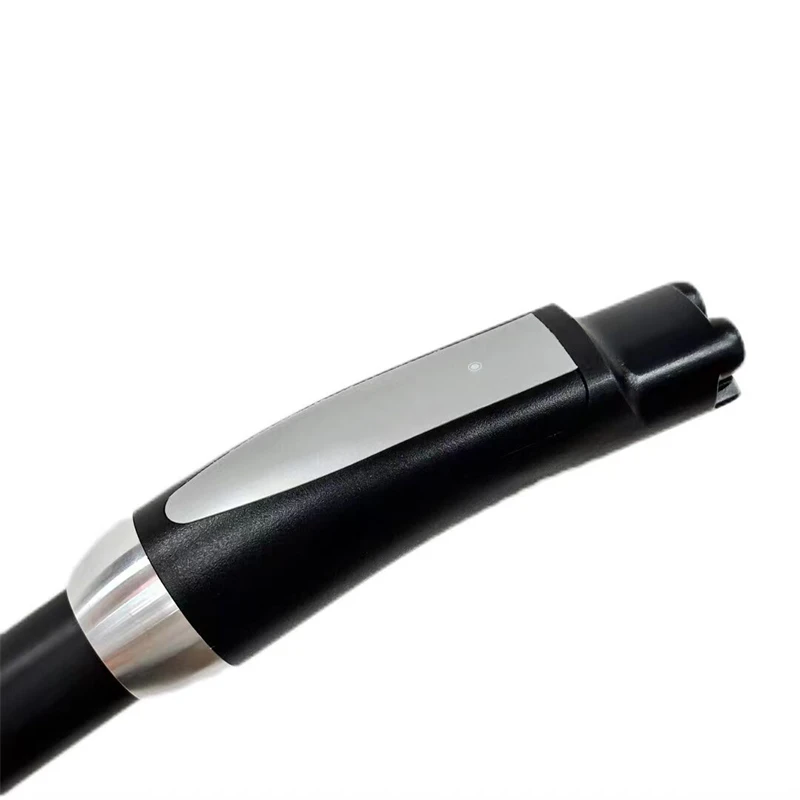

2. The 350A 400A NACS connector has a single button located on the top center of the handle. When the button is depressed, a UHF signal is emitted. When the connector is locked in place, the signal commands the vehicle to retract the latch holding the connector in place. When the connector is not locked in place, the signal commands the nearby vehicle to open the door covering the inlet.
3. If charge point operators want to offer charging for new Ford and GM EVs, they'll need to convert some of their CCS1 charger connectors to 350A 400A NACS Plug. DC fast chargers like Tritium's PKM150 will be able to accommodate 350A 400A NACS connectors in the near future.
4. Tesla Gun 350A 400A Tesla NACS Connector, 350A 400A Tesla NACS Plug.
Specification:
|
Features |
1. Meet NACS standard |
|
2. Concise appearance, support back installation |
|
|
3. Protection Degree: IP67 |
|
|
4. Max charging power: 350kW, 400KW |
|
|
Mechanical Properties |
1. Mechanical life: no-load plug in/pull out＞10000 times |
|
2. Impat of external force: can afford 1m drop amd 2t vehicle run over pressure |
|
|
Electrical Performance |
1. DC input: 350A 400A 1000V DC MAX |
|
3. Insulation resistance: ＞2000MΩ(DC1000V) |
|
|
4. Terminal temperature rise: ＜50K |
|
|
5. Insertion / Withdrawal Force: ＜ 90N |
|
|
6. UV Resistance: F1 per UL 746C |
|
|
Applied Materials |
1. Case Material: Thermoplastic, flame retardant grade UL94 V-0 |
|
2. Pin: Copper alloy, silver +thermoplastic on the top |
|
|
Environmental Performance |
1. Operating temperature: -40°C~+50°C |
