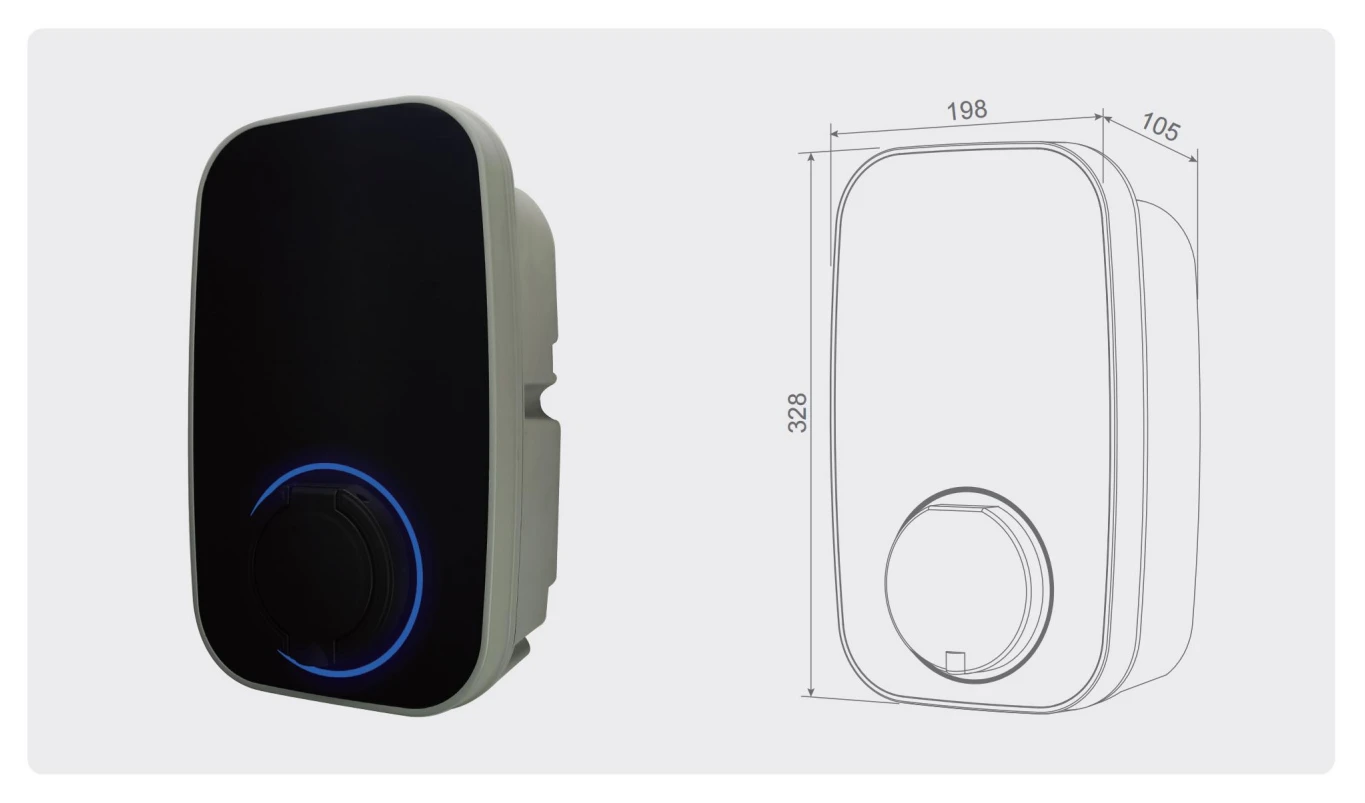

Ev Adjustable Type 2 Charger - 22KW Type 2 AC EV Charger Electric Car Charging Stations LED Light Ring Charge Point Fast EV Charger
IP54
Ground detection
LED charging status indicator
Surge protection
AC & DC Fault Protection
Over/Under voltage protection
Over Current Protection
Over temperature Protection
| Model Number | APEKS1S-32 |
| Ac power | 1P+N+PE |
| Voltage (V) | AC 220-240V |
| Frequency (Hz) | 50/60 |
| Operating Temperature | 25°℃ to +50°℃ |
| Rated Current | up to 32A max |
| Incoming Cable Terminals | 3 x16mm²terminals |
| Over Current Protection | Recommended 35.5A |
| Charging Socket | IEC 62196(Type 2 |
| AC &DC Fault Protection | 30mA Type A+6mA DC sensitive protective device |
Q: What is Mode 3 charging?
A: It is a method of electric vehicle (EV) charging that uses a dedicated charging station with a fixed cable and special connectors to provide AC power safely to the vehicle. It is designed for both private and public use.
Q: How does it differ from other charging modes?
A: Unlike Mode 2, which can use a portable charging cable with a household socket, Mode 3 requires a specific charging station and typically supports higher charging rates. It ensures better safety features and communication between the charging point and the vehicle than Mode 1, which is basic EV charging from a domestic socket.
Q: What types of connectors are used in mode 3 EV charger stations?
A: Common connectors include Type 1 (SAE J1772), Type 2 (IEC 62196-2), and the Mennekes plug, mainly in Europe.
