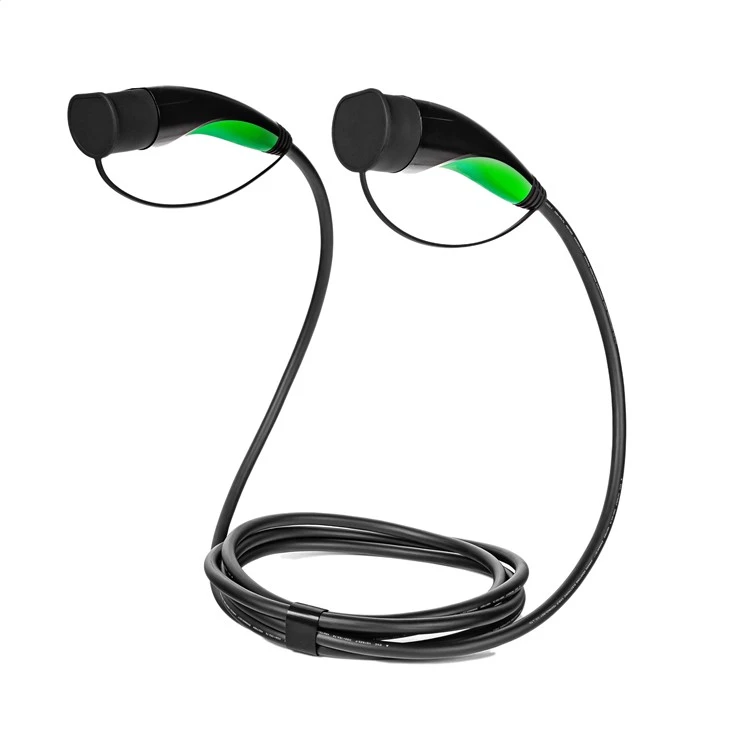

Electric Vehicle Charger Cable Type 2: Extended Range, Effortless Charging
Whether you need a home charging solution, require fast public station charging, or need to support commercial fleets, the Type 2 to Type 2 EV Charging Cable offers a reliable, durable, and efficient option. With varying power capacities, lengths, and advanced safety features, these cables ensure that your electric vehicle charging experience is fast, flexible, and secure.
| Plug Type | IEC 62196 (Type 2-Female) | IEC 62196 (Type 2-Female) | IEC 62196 (Type 2-Female) |
| Power Supply Plug | IEC 62196 (Type 2-Male) | IEC 62196 (Type 2-Male) | IEC 62196 (Type 2-Male) |
| Power | 7 kW | 11 kW | 22 kW |
| Maximum Current | 32 A | 16 A | 32 A |
| Power Supply | 1-Phase/Single Phase | 3-Phase/Three Phase | 3-Phase/Three Phase |
| Operational Voltage | 250V AC | 480V AC | 480V AC |
| Operational Temperature | -30℃- +50℃ | -30℃- +50℃ | -30℃- +50℃ |
| Degree of Protection | IP54 | IP54 | IP54 |
| Vandalism-Proof | No | No | No |
| UV Resistant | Yes | Yes | Yes |
| Certificate | TUV, CE | TUV, CE | TUV, CE |
| Contacts | Copper alloy + Silver plated | Copper alloy + Silver plated | Copper alloy + Silver plated |
| Cable Material | TPU/TPE | TPU/TPE | TPU/TPE |
| Cable Length | 5 m, 7 m, 10m | 5 m, 7 m, 10m | 5 m, 7 m, 10m |
| Manufacturer | MAS EV | MAS EV | MAS EV |
| Warranty | 24 months | 24 months | 24 months |
Notes:
1. Avoid excessive bending
Try to avoid bending the cable into sharp angles or stretching it too much. The wires inside the cable may be damaged by excessive bending or stretching, affecting charging efficiency and safety. The cable should be placed on a stable surface or properly wound when stored to prevent cable damage.
2. Ensure a secure connection
Before inserting the cable, make sure that the connection point between the vehicle-end plug and the charging pile plug is clean and free of foreign matter. When connecting, make sure that the plug is fully inserted to avoid poor contact or loose contact, which may cause power loss or charging interruption during charging.
3. Avoid high temperature environment
Although the cable is made of heat-resistant and pressure-resistant materials, please avoid exposing the cable to high temperature environments (such as places under direct sunlight) for a long time. High temperature may cause the outer layer of the cable to age and affect its service life. It is recommended to store the cable in a cool place when charging, especially when using it in summer.
FAQ
1. What is the difference between the 7 kW, 11 kW, and 22 kW versions?
The 7 kW version uses single-phase power and is ideal for home charging or locations where a lower charging capacity is sufficient.
The 11 kW and 22 kW versions use three-phase power, offering faster charging speeds. These are ideal for locations with higher power needs, such as commercial charging stations or fleet management.
2. What vehicles are compatible with the Type 2 to Type 2 EV Charging Cable?
The Type 2 to Type 2 EV Charging Cable is compatible with most electric vehicles that use the Type 2 charging standard, which is common in Europe. It works with vehicles such as BMW i3, Volkswagen ID.3, Tesla (with an adapter), Audi e-tron, and other electric vehicles that support the Type 2 connector.
3. Can I use this charging cable outdoors?
Yes, the Type 2 to Type 2 EV Charging Cable is rated IP54, which provides protection against dust and splashes of water. It is safe to use in outdoor environments, such as public charging stations or garages, even during light rain. However, it should not be submerged in water.
4. How do I determine which cable length I need?
The available cable lengths are 5 meters, 7 meters, and 10 meters. Choose the length based on:
The distance between your vehicle and the charging station (longer cables are better for wider parking spaces).
The location of your power source, ensuring the cable reaches your vehicle without tension or strain.
