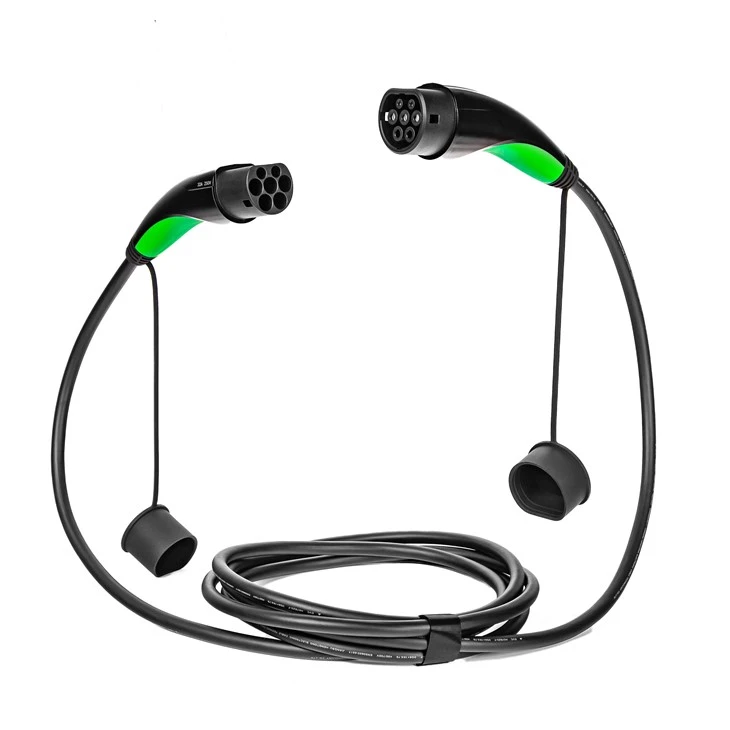

3 phase cable – High-Efficiency, Durable, and Ergonomically Designed for Safety
The 3 phase cable is a well-designed and fully functional electric vehicle charging device with extremely high safety and durability, suitable for use in various harsh environments. The plug is finely designed to easily distinguish between the vehicle-end plug and the power plug, effectively avoiding confusion during use.
Product Features
Ergonomic Design
The textured handle provides a comfortable grip, while the angled horizontal bend enables easier insertion and removal.
Materials and Craftsmanship
Made with pure copper cables and silver-plated copper connectors, the plug ensures efficient charging, stable conductivity, and reduced heat, which enhances safety even under high-intensity use.
Weather Resistance
Constructed with high-strength thermoplastic material and a one-piece molded outer design, the plug is waterproof and dustproof, making it especially suitable for use in rain and snow. The materials are water-resistant, heat-resistant, safe, odor-free, and highly durable.
| Plug Type | IEC 62196 (Type 2-Female) | IEC 62196 (Type 2-Female) | IEC 62196 (Type 2-Female) |
| Power Supply Plug | IEC 62196 (Type 2-Male) | IEC 62196 (Type 2-Male) | IEC 62196 (Type 2-Male) |
| Power | 7 kW | 11 kW | 22 kW |
| Maximum Current | 32 A | 16 A | 32 A |
| Power Supply | 1-Phase/Single Phase | 3-Phase/Three Phase | 3-Phase/Three Phase |
| Operational Voltage | 250V AC | 480V AC | 480V AC |
| Operational Temperature | -30℃- +50℃ | -30℃- +50℃ | -30℃- +50℃ |
| Degree of Protection | IP54 | IP54 | IP54 |
| Vandalism-Proof | No | No | No |
| UV Resistant | Yes | Yes | Yes |
| Certificate | TUV, CE | TUV, CE | TUV, CE |
| Contacts | Copper alloy + Silver plated | Copper alloy + Silver plated | Copper alloy + Silver plated |
| Cable Material | TPU/TPE | TPU/TPE | TPU/TPE |
| Cable Length | 5 m, 7 m, 10m | 5 m, 7 m, 10m | 5 m, 7 m, 10m |
| Manufacturer | MAS EV | MAS EV | MAS EV |
| Warranty | 24 months | 24 months | 24 months |
FAQ
1. What is a Type 2 Charging Plug used for?
It is primarily designed for electric vehicle (EV) charging. It is compatible with Type 2 charging stations and vehicles, providing a safe and efficient method for EV power transfer.
2. How do I differentiate between the vehicle-end plug and the power supply plug?
The power supply plug (male) has a larger head and comes with a dust cover, making it easy to recognize. The vehicle-end plug (female) has a smaller head and also features a dust cover, helping prevent dust buildup in the socket.
3. Is the Type 2 Charging Plug weatherproof?
Yes, the Charging Plug is made with high-strength thermoplastic material and a one-piece molded outer casing, making it both waterproof and dustproof. It can be safely used in various weather conditions, including rain and snow.
