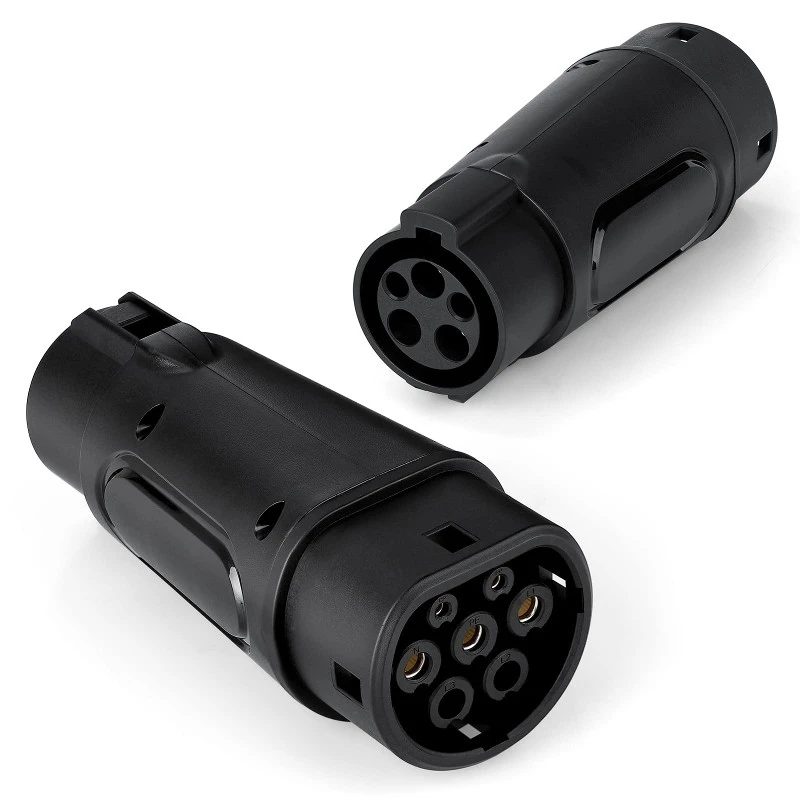

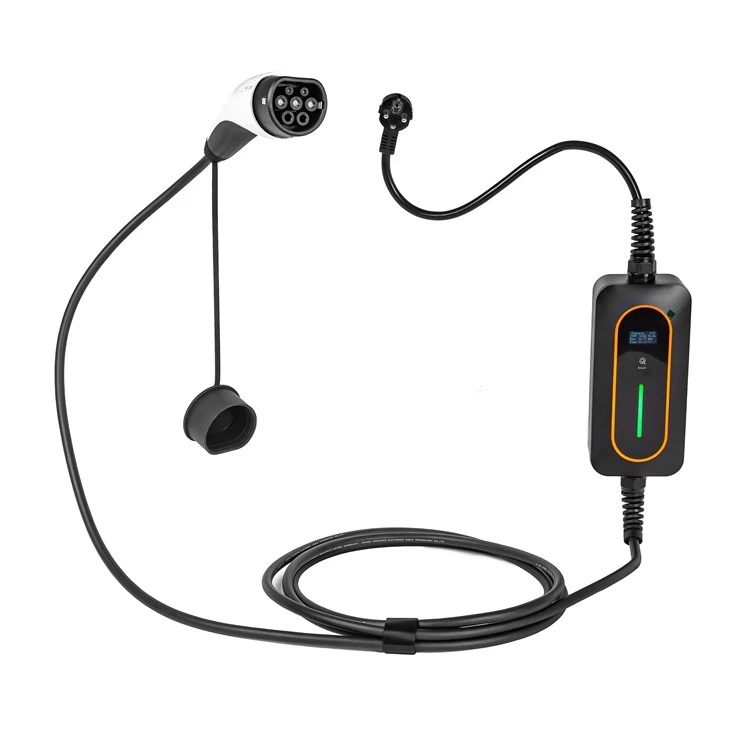

J1772 to Type 2 EV cable benefits and key features
Benefits
Improved Compatibility: Connects J1772 (US) and Type 2 (European) charging setups and vehicles. Enables EV users to switch among different - standard chargers globally, expanding charging choices.
Convenient Travel: Ideal for cross - border and cross - region trips. Eliminates charging concerns from interface standard differences, ensuring journey - long charging ease.
Key features
Standard compliance: Meets both SAE J1772 (American standard) and IEC 62196-2 (European standard) standards to ensure compatibility with relevant charging equipment and vehicles.
Electrical performance: With rated working current (commonly 16A or 32A), rated voltage (such as 120V/240V) and other indicators to ensure safe and stable power transmission.
Durability: Use high-quality materials, such as copper wire to ensure efficient conductivity, TPU and other materials to enhance wear resistance and aging resistance; long mechanical life, no-load plug-in and unplug times are usually greater than 10,000 times.
Protection: Generally has waterproof and dustproof design (such as IP54, IP66 and other protection levels), some have anti-electric shock insulation design, can withstand harsh environments, and ensure safe use.
Standard adaptation: Complies with SAE J1772 (American standard) and IEC 62196-2 (European standard), connects corresponding charging facilities and vehicles.
Electrical parameters: Rated current is commonly 16A or 32A, working voltage is 110V-250V, insulation resistance>1000MΩ (DC500V), withstand voltage is 2000V, contact resistance is ≤0.5mΩ.
Durability: Long mechanical life, no-load plugging and unplugging>10,000 times; shell material is wear-resistant and anti-aging.
Protection: It has waterproof and dustproof (such as IP54 protection level), anti-electric shock insulation design.
Notes on use: Disconnect the vehicle end first after charging is completed, and remove it from the charging station when not in use; working environment temperature -30℃-+50℃.
6 articles
FAQ
Q: How is product quality guaranteed?
A: We use high-quality raw materials, such as high-purity copper wire and durable engineering plastic housing. The production process is fully automated, strictly implements SAE J1772 and IEC 62196-2 standards, multiple process inspections, and 100% sampling of finished products to ensure compliance with international standards.
Q: Q: How long is the delivery cycle of J1772 to Type 2 EV cable?
A: Normally, it takes 10-15 working days to ship. In case of raw material shortage or peak order, it may be extended to 20 working days, and the progress is synchronized throughout the process.
Q: What is the after-sales policy?
A: 18-month warranty. If there are quality problems during the warranty period, free replacement or repair with voucher, quick response, and priority arrangement for replacement.
Q: Can you provide certification information?
A: The product has passed international certifications such as UL and CE. After placing an order, we can provide certification documents and scanned copies of certificates, and we can also assist in handling special certification needs.
